Specification of Ukrainian Spiral Razor Wire
| Wheel Diameter in Transport Mode | 1100±20 mm |
| Diameter of the circle in working condition | 900 mm |
| Number of connection points on the circle(number of brackets) | 7 |
| Number of turns in the bobbin is not less than | 100 |
| Diameter of the main wire | 2.8-3.0 mm |
| Recommended stretching length | 20 m |
| Maximum stretching length | 25 m |

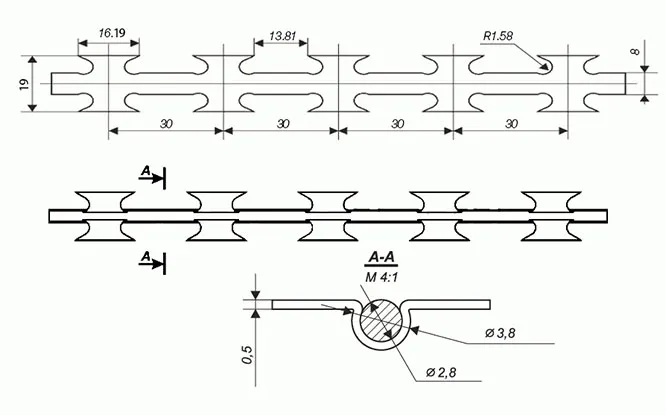

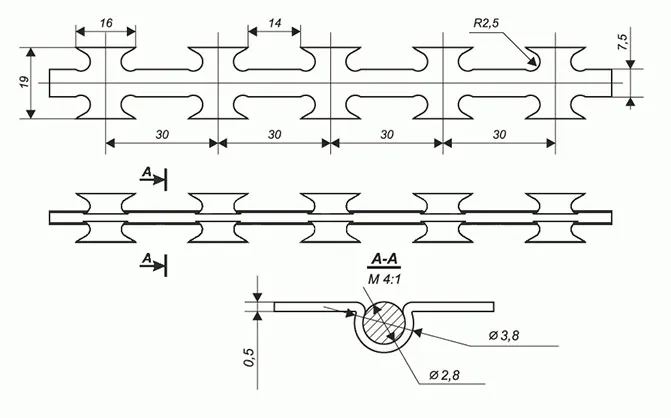

| Barbed tape blade shape | Aggressive, radius of rounding of the base of the blade on the barbed tape |
| Bobbin weight | Up to 35 kgs |
| Connecting brackets | Made of galvanized steel EN 10346 |
| Staple length | Not less than 45mm |
| Zinc coating of the clamp density | Not less than 140g/m2 |
| Tape material(cutting blades) | Made of galvanized carbon steel EN 10346 thickness 0.5-0.55mm |
| Barbed tape blade length | 16-17mm |
| Barbed tape width | Not less than 19mm |
| Width of the middle strip of barbed wire crimping tape | Not less than 7.55mm |
| Barbed tape tooth pitch | Not more than 30mm |
| Zinc coating density of barbed tape | Not less than 140 g/m2 |
| Zinc wire standard | According to EN 50189 or EN 10244-2 with a coating density of at least 80 g/m2. Hot-dip galvanizing( ESEN 10264-2(DIN 48200, DIN 2078)) |
| Temporary rupture resistance force | Not less than 1600 N/mm2 |
